배치식 고상중합Vacuum Tumbler Reactor(BATCH SSP)

Bottle to Bottle FDA승인 PET재생라인
고상중합 공정은 1mbar absolute의 진공하에서 최대 250℃로 가열이 됩니다.

카탈로그 다운로드
  • 주요 처리 소재PET, PBT, PEN, PA6, PA66 etc
  • 주요 용도Bottle, Fiber, Industrial Yarn(광케이블, 타이어코드, 에어백, 필터소재, 어망 등)
  • 공정고상중합 공정은 1mbar absolute의 진공하에서 최대 250℃로 가열이 됩니다. 공정은 Batch 공정으로 이루어지며, 저희는 이 분야에서 200대 이상의 실적을 가지고 있고, 국내에도 다수의 실적을 보유 중입니다.

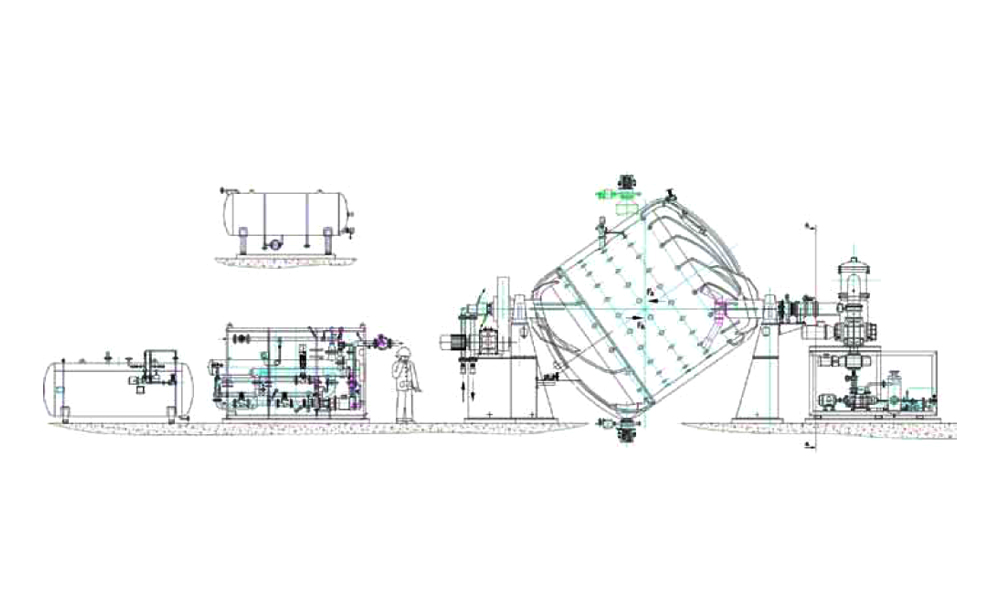

  • 1. Reactor
  • 2. Heating/cooling system
  • 3. Vacuum pump station
  • 4. Automatic operation (for automatically filling and discharging the reactor)
  • 5. Control system with switch cabinet
Type Filling with pellets in kg Output drive motor in kW ① Heating in kW ② Suction capacity vacuum pump station in m³/h
TTR 16 ~ 9,500 9 210 ~ 4,000
TTR 24 ~ 14,300 15 280 ~ 4,000
TTR 36 ~ 21,400 22 350 ~ 8,000
TTR 44 ~ 26,200 30 500 ~ 12,000
  • ① Material with bulk density of 0.85kg/1
  • ② Final specification is dependent on the process
Additional data
Speed range 05 to 2 rpm
Vaccum < 1 mbar abs.
Leakage rate < 0.1 mbar*l/x
Maximun operating temperature 250°C

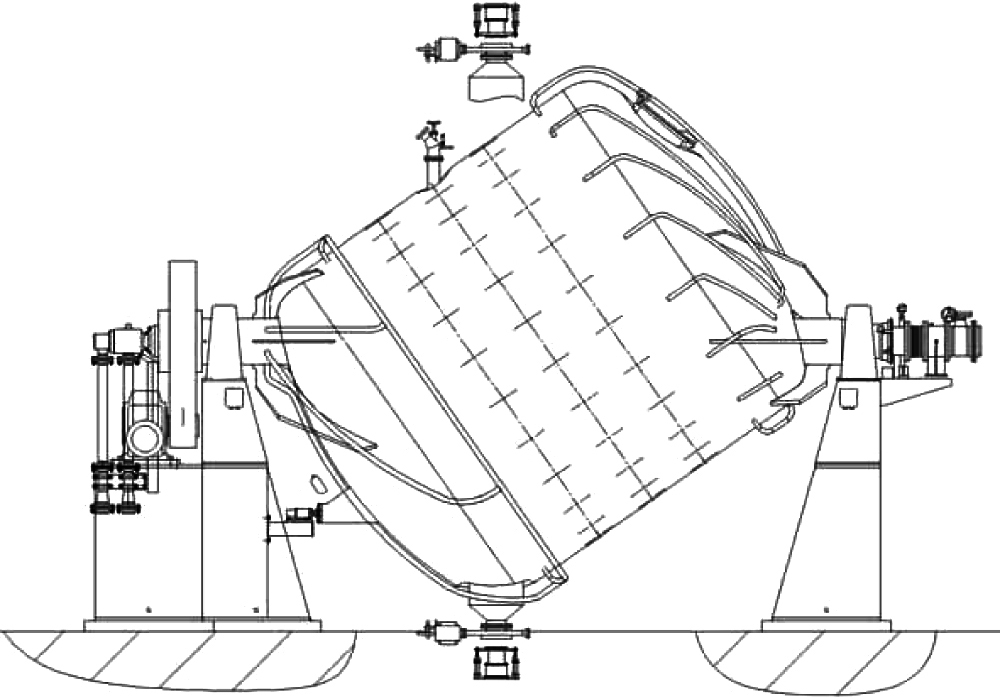

The reactor

For heating of the plastic pellets, the reactor is equipped with a double jacket through which the tempered heat transfer oil flows. The oil is fed in through a rotary joint on one of the two shafts. The opposite shaft is connected to the interior and is used to extract the vapors. The reactor is actuated by a reduction gear and can revolving within a speed range of 0.5 to 2 rpm - depending on the requirements of the process.
